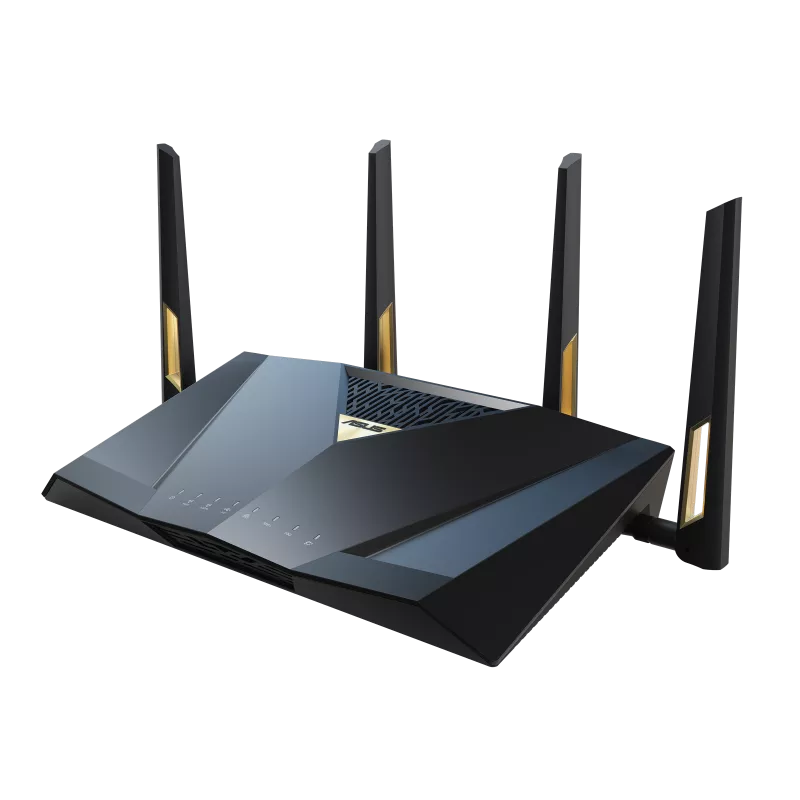

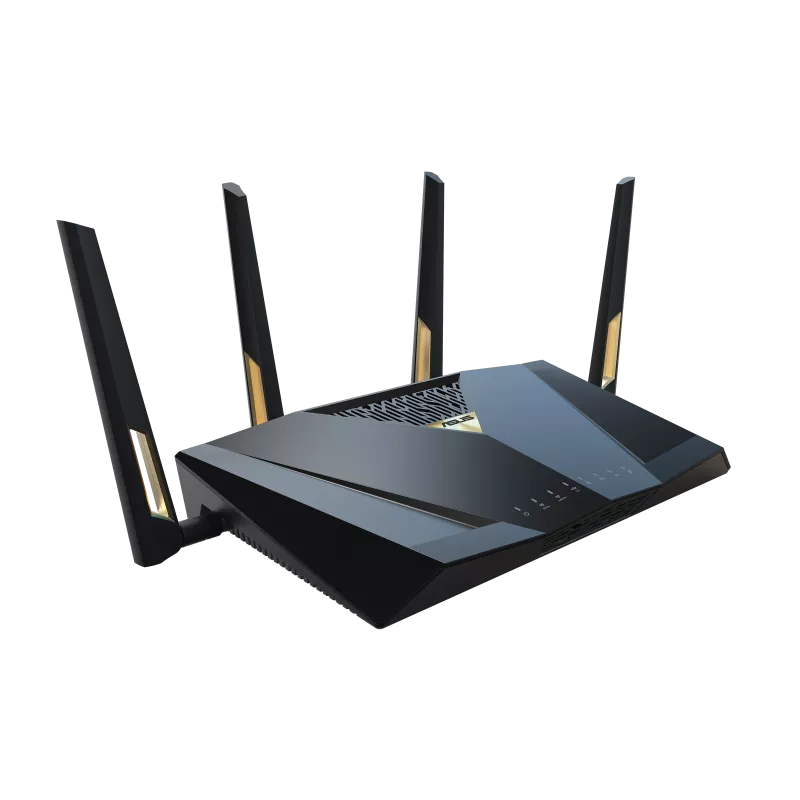

ASUS RT-BE88U WIFI ROUTER

IPv6

IPv4

WiFi 7 (802.11be)

WiFi 6 (802.11ax)

WiFi 5 (802.11ac)

WiFi 4 (802.11n)

IEEE 802.11g

IEEE 802.11b

IEEE 802.11a

BE7200 ultimate BE performance : 1376+5764 Mbps

WiFi 7 (802.11be) (5GHz): up to 5764 Mbps

WiFi 7 (802.11be) (2.4GHz): up to 1376 Mbps

External antenna x 4

5GHz 4x4

2.4GHz 4x4

2.6GHz quad-core processor

256 MB Flash and 2 GB RAM

OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
4096-QAM high data rate
20/40/80/160 MHz bandwidth

5 GHz

2.4 GHz

Repeater Mode

Media Bridge Mode

Access Point Mode

AiMesh Node Mode

Wireless Router Mode

1 x 10Gbps for WAN/LAN, 1 x 10Gbps SFP+ Port, 1 x 2.5Gbps for WAN/LAN, 3 x 2.5 Gbps for LAN, 4 x RJ45 10/100/1000Mbps for LAN, USB 3.2 Gen1 x1

WPS Button, Reset Button, Power Switch

WAN x1
10G WAN x1
10G SFP+ x1
LAN x1
USB 3.2 Gen 1 x1
2.4GHz x1
5GHz x1
Power x1

AC Input : 110V~240V(50~60Hz)
DC Output : 12V with max. 5 A current；19 V with max. 2.37 A current ； 19.5 V with max. 2.31 A current

RT-BE88U WiFi router
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card

1060 g

300*188*60.5

AiMesh, • Primary AiMesh Router, • AiMesh Node

Mobile Game Mode, Gear Accelerator, OpenNAT (Game Profile), Gaming Port

"Allow you to block access to unwanted websites and apps.", Web & Apps Filters, Time Scheduling, Safe Browsing, Customized Internet Schedule, • Maximum Parental Control Profile : 64, • Maximum Parental Control Content Filter Rule : 64

"You can create additional networks for different purposes, these networks are separate from the main network domain, to provide enhanced security, and create comprehensive network environment with customized settings.", Support Guest Network Pro, • Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 5, Guest Network Connection Time Limit, Guest Network Pro Encryption : Open system, WPA/WPA2-Personal/WPA3-Personal

AiProtection, VPN, WPA3 Personal, WPA2 Personal, WPA Personal, WPA Enterprise, WPA2 Enterprise, WPA3 Enterprise, Open System & OWE, WPS, Let's Encrypt, DNS-over-TLS, SSH, Security Scan, Firewall, • Maximum Firewall Keyword Filter : 64, • Maximum Firewall Network Service Filter : 32, • Maximum Firewall URL Filter : 64

AiProtection Pro, • Router Security Assessment, • Malicious Site Blocking, • Two-Way IPS, • Infected Device Prevention and Blocking

Instant Guard, VPN Client L2TP, VPN Client Open VPN, VPN Client PPTP, VPN Client WireGuard, VPN Server IPSec, VPN Server Open VPN, VPN Server PPTP, VPN Server WireGuard, VPN Fusion, Support Surfshark

Adaptive QoS, • Bandwidth Monitor, • Bandwidth Limiter, -- Maximum Bandwidth Limiter Rule : 32, Traditional QoS, Traffic Monitor, • Real-time Traffic Monitor, • Wired Traffic Monitor, • Wireless Traffic Monitor, Traffic Analyzer, • Traffic Analysis Period : Daily, Weekly, Monthly, • Website History

• IPSec

• Static IP

• Automatic IP

• L2TP

• PPTP

• PPPoE

Internet Connection Type :, Dual WAN, WAN Aggregation, 3G / 4G LTE dongle, Port forwarding, • Maximum Port Forwarding Rule : 64, Port triggering, • Maximum Port Triggering Rule : 32, DMZ, DDNS, • PPPoE Relay

• SIP Pass-Through

• H.323 Pass-Through

• RTSP Pass-Through

• IPSec Pass-Through

• L2TP Pass-Through

• PPTP Pass-Through

NAT Passthrough :

DHCP Server, IGMP Snooping, IPTV, LAN Link Aggregation, Manually Assign IP Address, • Maximum Manually Assign IP Address Rule : 128, Wake on LAN (WOL)

MU-MIMO, UTF-8 SSID, WiFi MAC Address Filter, • Maximum MAC Filters : 64, Wireless Scheduler, Airtime Fairness, RADIUS Client, Universal Beamforming, Explicit Beamforming

• ext4

• ext3

• ext2

• vFAT

• NTFS

• HFS+

File System :, Safely Remove Disk, AiCloud, Download Master, AiDisk, Media Server, Time Machine, Samba Server, FTP Server, Shared Folder Privileges

WEB: ASUSWRT, APP: ASUS Router APP
